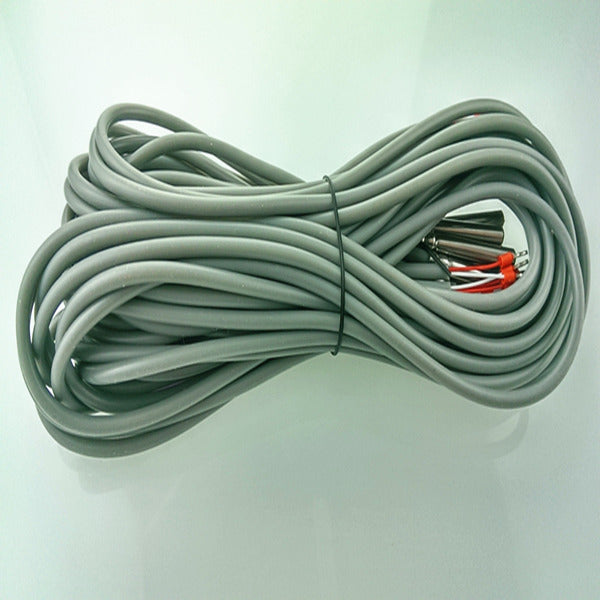

RTD Class B PT100 Platinum Resistance Temperature Sensor
RTD Class B PT100 Platinum Resistance Temperature Sensor
RTD Class B PT100 Platinum Resistance Temperature Sensor
RTD Class B PT100 Platinum Resistance Temperature Sensor

RTD Class B PT100 Platinum Resistance Temperature Sensor

Regular price
0 in stock

Please contact us if you are interested in this product.

Product Description:

The RTD is one of the most accurate temperature sensors. Not only does it provide good accuracy, it also provides excellent stability and repeatability. Most OMEGA standard RTDs comply with DIN-IEC Class B. RTDs are also relatively immune to electrical noise and therefore well suited for temperature measurement in industrial environments, especially around motors, generators and other high voltage equipment.


Product Dimension (mm):

NO Material Name Item/PN
1 Housing Φ6.0×50mm Stainless Steel (SUS304)
2 Element Platinum Resistance: PT100 (Class B)
3 Coating Epoxy Resin
4 Lead Wire PVC 80℃ AWG24*2(Red and White) OD5.2 (Gray)
5 Terminal E0508 Tubular Insulated Terminals (Red)
Product Performances:
P/N Nominal resistance at 0℃(Ω) Resistance Tolerance at 0℃ Tolerance grade Withstand voltage test (Sec) Insulation resistance (MΩ) Operating temp. range
Pt100 100 ±0.30℃ B Shell and wires between AC1750V for 2S, no breakdown, flashover phenomenon Between the shell and wires DC500V, water > 100MΩ insulation resistance measurement -45℃~180℃



Product Features:

RTDs offer several advantages:
• A wide temperature range (approximately -200 to 850°C)
• Good accuracy (better than thermocouples)
• Good interchangeability
• Long-term stability
