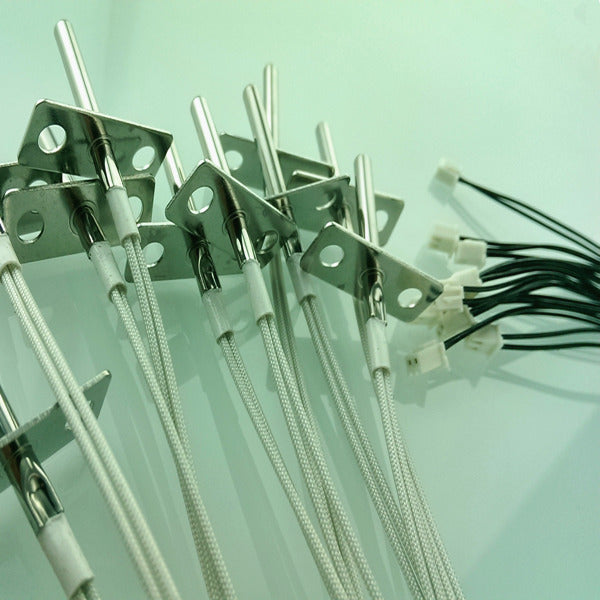

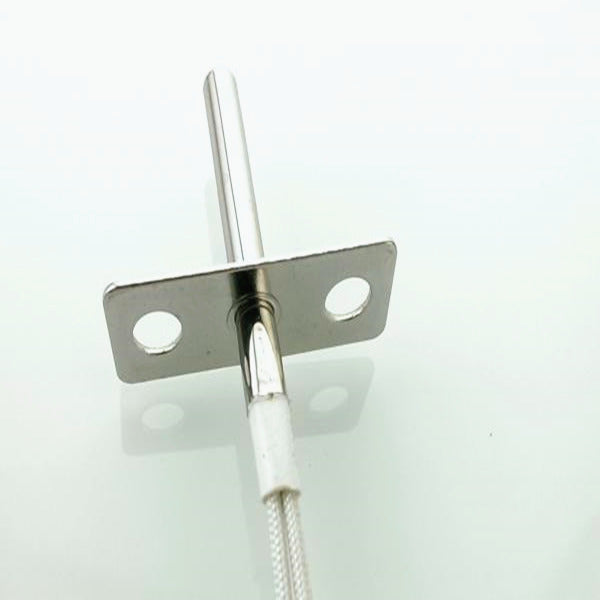

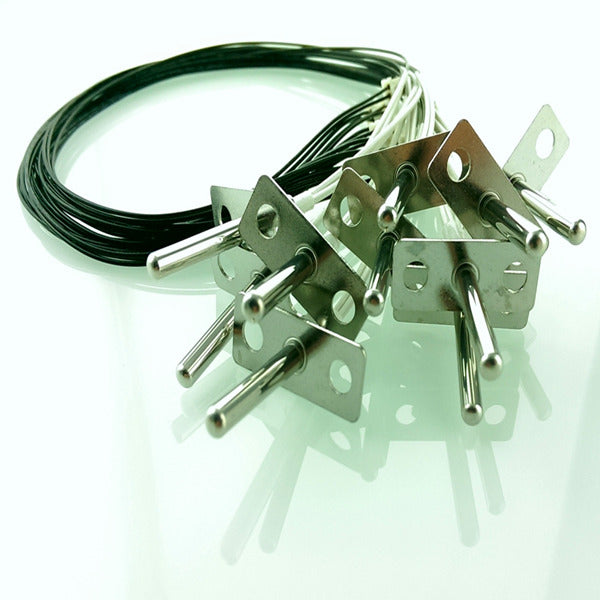

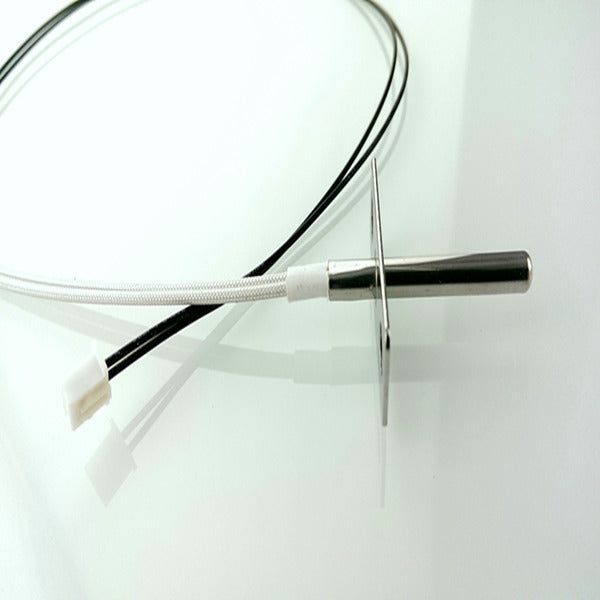

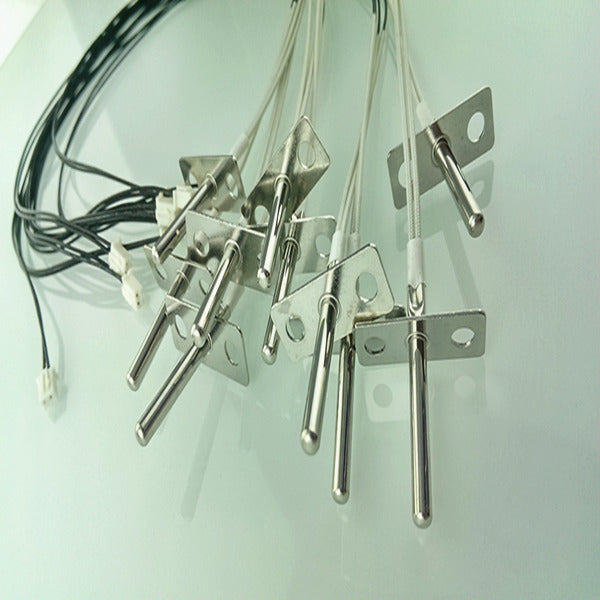

100K Temperature Sensor Probe For Oven
100K Temperature Sensor Probe For Oven
100K Temperature Sensor Probe For Oven
100K Temperature Sensor Probe For Oven
100K Temperature Sensor Probe For Oven
MakeSafer

100K Temperature Sensor Probe For Oven

Regular price
0 in stock

Please contact us if you are interested in this product.

Description:


The temperature probe lets you cook roasts and poultry to the exact internal temperature you want, taking the guess work out of determining whether a piece of meat is done or not. You can use the temperature probe with the oven set to Bake, Convection Bake, or Convection Roast. When you use the temperature probe, the internal temperature is shown on the display when it reaches 100°F.



Product Dimension (mm):



Materials:



NO COMPONENT MATERIAL AND SPECIFICATIONS Q'TY REMARK
1. Housing ø4×50+12×20 Stainless steel 1
2. Element R25=100KΩ±1% B25/50=3950K±1% DD 1
3. Wire UL3122# 24AWG 200℃ 300V L=800mm 2  White
4. Casing ø4 60±5 Fiberglass pipe 1 White
5. Terminal Peeling tin plating
 Performances:

NO Item Sign Test Conditions Min. Normal value Max. Unit
1. Resistance at 25℃ R25

Ta=200±0.05℃

PT≦0.1mw

9.9 10 10.1
2. B Value B25/50 3910.5 3950 3989.5 k
3. Dissipation factor σ Ta=25±0.5℃ 2.5 / mw/℃
4. Time constant τ Ta=25±0.5℃ / / 20 sec
5. Insulation resistance / 500VDC 100 / /
6. Withstand voltage / 1500V AC (3mA) 5 / / Sec
7. Operating temp.range / / -10 / +200(head)
