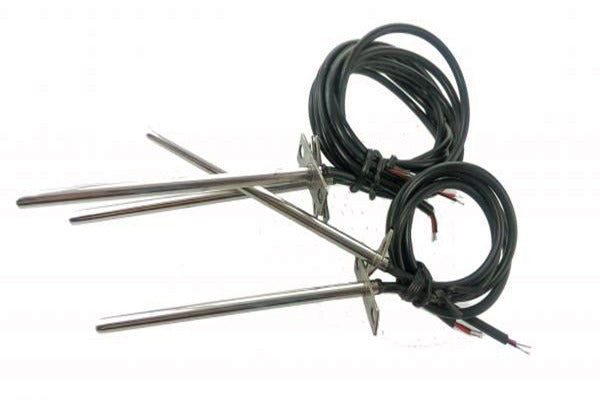

Stainless Steel Flange Temperature Sensor 10K For Air-conditioner
Stainless Steel Flange Temperature Sensor 10K For Air-conditioner
Stainless Steel Flange Temperature Sensor 10K For Air-conditioner
MakeSafer

Stainless Steel Flange Temperature Sensor 10K For Air-conditioner

Regular price
0 in stock

Please contact us if you are interested in this product.

Product Description:

This air-flow temperature sensor is designed to satisfy the many requirements of air temperature measurement and control in air conditioning systems. The flange provided lends itself to easy mounting in Duct systems and Flow Hood equipment.



Product Dimension (mm):



Materials:

NO COMPONENT MATERIAL AND SPECIFICATIONS Q'TY REMARK
1. ELEMENT R25=10KΩ±1% B25/50=3380K±1% 1
2. HOUSING

Y-201J Φ5.0×105+100+12×30+2-Φ5.0

Stainless steel components

1
3. COATING Epoxy Resin   Black
4. LEAD WIRE UL2464 AWG24*2C 80℃ OD:3.6 L=600mm 1 Black
5. TERMINAL Peeling (7±1mm), On The Tin
Product Performances:
NO Item Sign Test Conditions Min. Normal value Max. Unit
1. Resistance at 25℃ R25

Ta=25±0.05℃

PT≦0.1mw

9.9 10.0 10.1
2. B Value B25/50 3346 3380 3414 k
3. Dissipation factor σ Ta=25±0.5℃ 3 / mw/℃
4. Time constant τ Ta=25±0.5℃ / / 12 sec
5. Insulation resistance / 500VDC 100 / /
6. Withstand voltage / 1500V AC 5 / / Sec
7. Operating temp.range / / -10 / +80


Features:

Mounting Flange is Pre-Drilled with #6 Screw Clearance Holes to Provide For Easy Mounting In Ducts and Flow Systems


Small Thermal Mass Provides Rapid Response to Temperature Changes


Available with Resistances of 2252 Ohms, 3000 Ohms, 5000 Ohms, 10K Ohms and 30,000 Ohms at 25°C
High Accuracy 1%


Maximum Temperature: 80°C


Available with all kinds of customized cable.



How to place the order with our products?

Offer Requirement for Inquiry →Producing Sample →Sample Confrimation →
Quotation →PI → Confirm PI → Arrange Payment→ Manufacture → Shipping
