10K NTC thermistors
10K NTC thermistors
MakeSafer

10K NTC thermistors

Regular price
0 in stock

Please contact us if you are interested in this product.

Product Description:

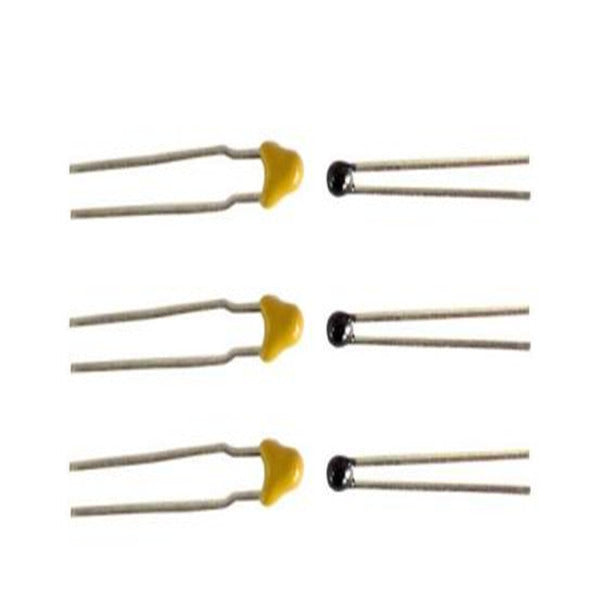

    Makesafer radial type NTC thermistor, that is composed of epoxy-coated sensor head and two lead wires of Sn coated. This series is designed for easy soldering to wire harness or circuit board(PCB).
MF52 series in the form of radial resin coated form.
Wide resistance range: 0.1~500KΩ
High precision of resistance and B value.
 High measurement precision.
 Small dimension, fast response.
Good consistency.
Can Operate in long time stability.
 Operating temperature range: -40 ~ +125℃.
10K NTC Thermistors:
Dimension (mm):

A

B

C

D

L

Max 2.5

Max 4.0

1.7±.5

0.3±0.05

25±1

Max 3

Max 4.5

2.2±.5

0.45±0.05

25±1

Materials:

NO

Material Name

Item/PN

E.

Element

R25=2.7KΩ±1% B25/50=3950±1%

B

Coating

Epoxy resin

D.

Lead Wire

CP Wire

Performances:

NO

Item

Sign

Test Conditions

Min.

Normal value

Max.

Unit

1.

Resistance at 25℃

R25

Ta=25±0.05℃

PT≦0.1mw

2.673

2.7

2.727

2.

B Value

B25/50

3910.5

3950

3989.5

k

3.

Dissipation factor

σ

In still air

≥2

mw/℃

4.

Time constant

τ

In still air

≤7

sec

5.

Operating temp.range

/

/

-55

/

+125

6

Insulation resistance

/

100V DC 1min

≥100

7.

Maximum rated power

Pmax

/

≤50

mW

Applications:
Certifications:

PTC sensor used for motor overload protect


Main Export Market Reports :

PTC sensor used for motor overload protect
Our Services

-We will contact the customers every three months to check if the products running well.

-If receiving the notice from the buyer, we will respond to the customer within
24 hours .

-If you are caught in some problems when using our products, welcome to
contact us at any time.
Payment Terms:
-T/T
-Western Union
-PayPal
Shipping: 3 -5 days
How to place the order with our products?
Offer Requirement for Inquiry →Quotation →Producing Sample →Sample Confrimation→PI → Confirm PI → Arrange Payment→ Manufacture → Shipping

Together, we can make it better.  Makesafer, let's make electronic safer.
Makesafer technology is a professional protective components supplier. We could better offer you full range electronics components with competitive price and professional service.

Makesafer researches, manufactures and markets a wide range of protective components, including PPTC resettable fuse, PTC thermistor/sensors, NTC thermistors, NTC temperature sensors, Infrared Pir motion sensors, heating film elements and so on.
We place great emphasis on the technologies and products that can bring suitable solutions to meet customer's special requirements. Our goal is not only to continuously expand business, but also to provide customers with more responsive service and support activities.
As a professional protective components supplier, we always combine precision quality with efficient processing and excellent service. Our manufacturing bases are certified under ISO9001. All our products are RoHS compliant, and certificated under UL, TUV approvals.
    Makesafer, the best professional protective device supplier you can trust in China.
    Let’s Make Electronics Safer.
