PVC Wire 100K NTC Thermistor

Regular price
0 in stock

Please contact us if you are interested in this product.

Product Description:

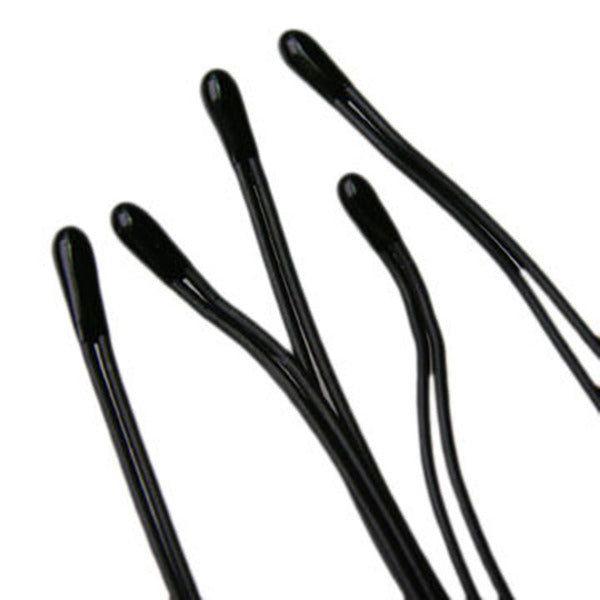

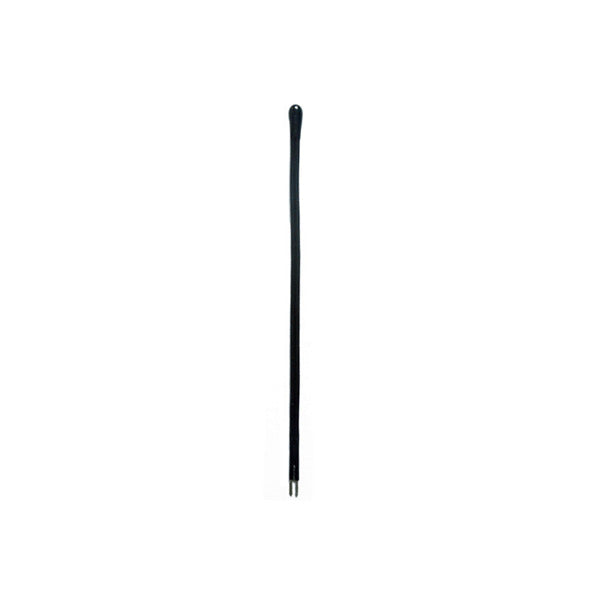

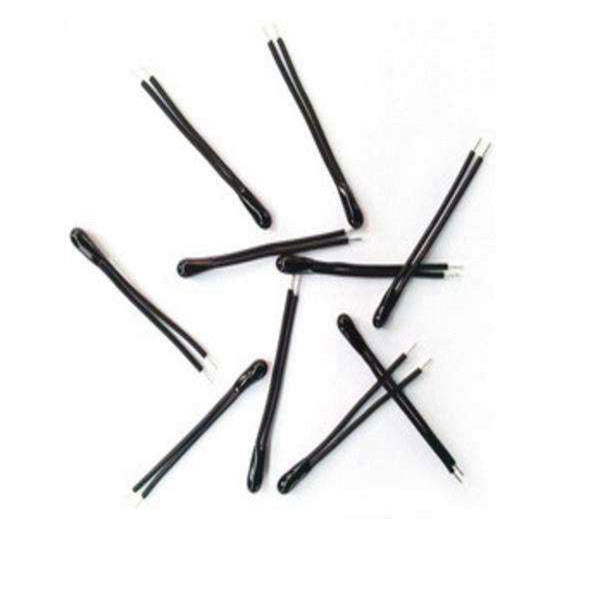

PVC Wire 100K NTC Thermistor
    These thermistors have a negative temperature coefficient.
The device consists of a chip with two solid copper tin plated leads. It is grey lacquered and color coded, but not insulated.
Features:
• Accuracy over a wide temperature range
• High stability over a long life
• Excellent price/performance ratio
• Wide resistance range
• Cost-effective
• Tinned copper leads
Dimension:
NO Material Name Item/PN
a. Element R25=2.7KΩ±1% B25/85=3977K±1%, Customized
b. Coating Epoxy Resin (Black), Customized
c. Lead Wire

UL1332 AWG28 * 2C (Black), Customized

Electrical Performances:
NO Item Sign Test Conditions Min. Normal value Max. Unit
1. Resistance at 25℃ R25

Ta=25±0.05℃

PT≦0.1mw

2.673 2.7 2.727
2. B Value B25/85 3937 3977 4016 k
3. Dissipation factor σ Ta=25±0.5℃ 2.5 / mw/℃
4. Time constant τ Ta=25±0.5℃ / / 20 sec
5. Insulation resistance / 500VDC 100 / /
6. Withstand voltage / 1500V AC (3mA) 5 / / Sec
7. Operating temp.range / / -40 / +105
Applications:

      Temperature measurement, sensing and control,temperature compensation in industrial and consumer electronics.
Certifications:

PTC sensor used for motor overload protect


Main Export Market Reports :

PTC sensor used for motor overload protect
Our Services

-We will contact the customers every three months to check if the products running well.

-If receiving the notice from the buyer, we will respond to the customer within
24 hours .

-If you are caught in some problems when using our products, welcome to
contact us at any time.

Payment Terms:
-T/T
-Western Union
-PayPal

Shipping: 3 -5 days
How to place the order with our products?
Offer Requirement for Inquiry →Quotation →Producing Sample →Sample Confrimation→PI → Confirm PI → Arrange Payment→ Manufacture → Shipping
